i5HD Button Tray Utility Install

In order to set up the Claris i5HD Button Tray Utility, you will first need to run the installer found on our resources page.

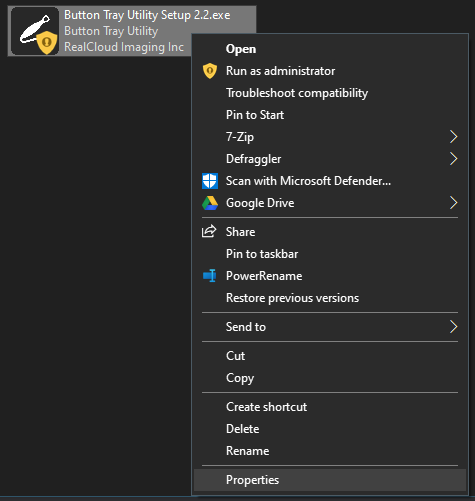

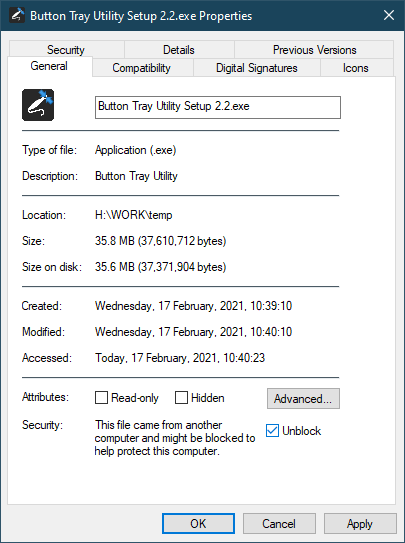

1. Before running the installer, you may need to unblock the file. To do this, right-click the file, Button Tray Utility Setup 2.2.exe, and go to properties. Once there, towards the bottom of the window you will see a security field with a checkbox labeled Unblock, check that box and click Apply. If you do not see the security field shown below, you can move on to step 2.

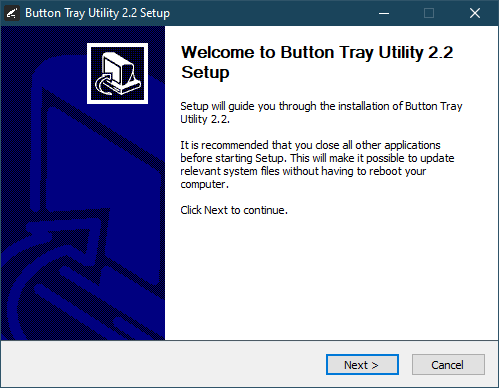

2. Now you may run the file/open the file. Select the Next button on the Welcome screen.

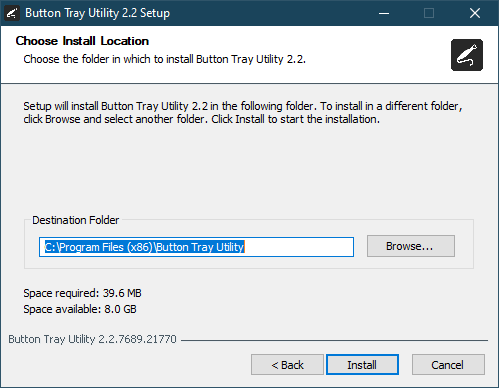

3. Select the install destination folder and click on the Install button.

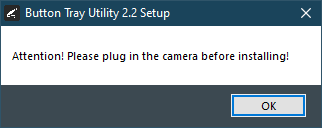

4. Plug the i5HD camera into the computer and click on the OK button to start the installation.

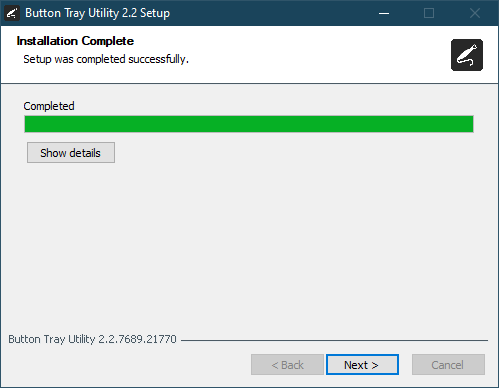

5. Click on the Next button to continue.

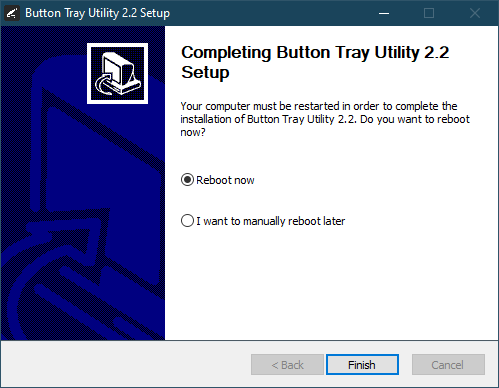

6. Select a reboot option (if prompted) and click on the Finish button.
7. Right-click on the Button Tray Utility icon in your system tray and select 'Preferences'.


8. In the Preferences window, if things were installed properly, you should see the Camera Registered box checked. You can then fill in the values for the software you are using and click Done.



Software	Short press #1	Short press #2	Long press
Ascend Imaging	s	N/A	x
Apteryx X-ray Vision 3.x and 4.x	"space” key	N/A	~
Carestream/Kodak Dental Imaging Software 6.12 and higher	{F5}	N/A	N/A
CDR DICOM 5.4.x and higher	c	~	N/A
DBSWIN 5.14.1 and higher	%13	N/A	%14
Dexis 9.4.6 and higher	"space” key	T followed by a "space” key	"space” key
Dexis Imaging Suite 10.x and higher	"space” key	T followed by a "space” key	"space” key
EVAsoft/ProImage 3.4 and higher	"space” key	N/A	N/A
Patterson Imaging/Eaglesoft 15.x and higher	f	s	u
Progeny Imaging 1.16.x and higher	^%c	N/A	N/A
Romexis 5.1.1 and higher	%f	%s	%r
Sidexis 4.2 and higher	~	^s	~
SOTA Image 2.4.x or higher	c	s	r
XDR 3.2 and higher	“space” key	N/A	N/A

If you have any questions about any step of this process, we would love to assist you further. Again, you can reach us by phone at 714.532.6100 extension 2 or by email at [e-mail].
