SOTA Image: Exporting Images from SOTA Image

NOTE This guide is designed for SOTA Image version 2.5 or later. If you're using version 2.4 or below and are trying to export as a JPG, please reference our Exporting Images (legacy edition) guide.

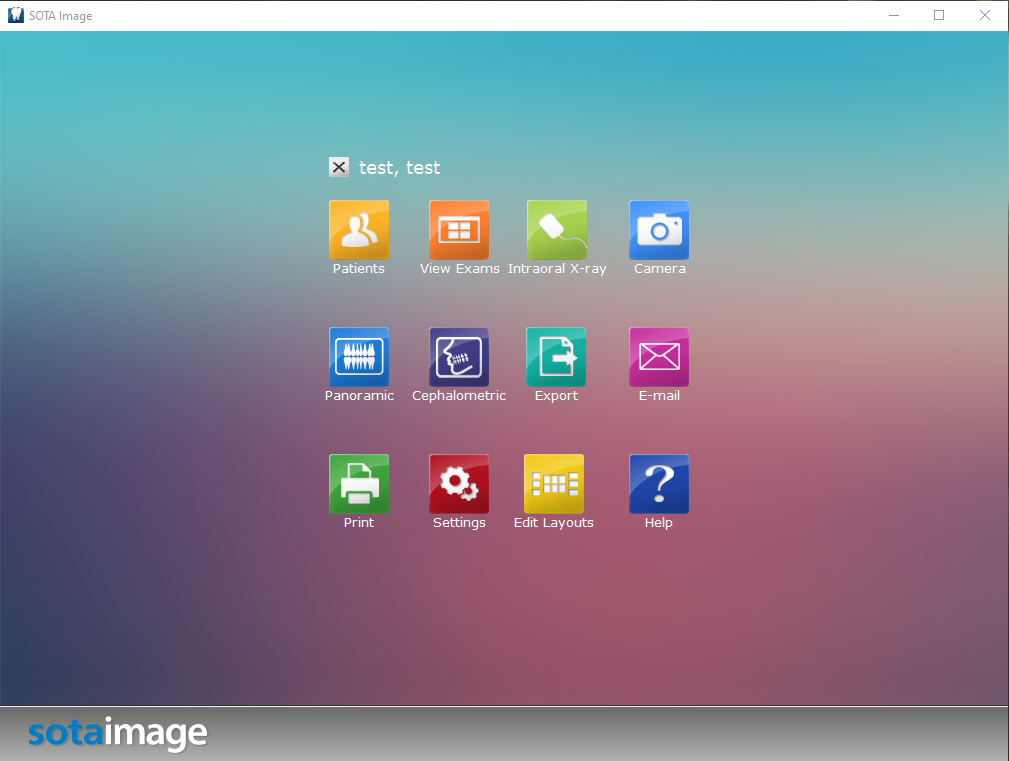

To export images from SOTA Image, first, select the patient that you want to export images from and then select the View Exams icon.

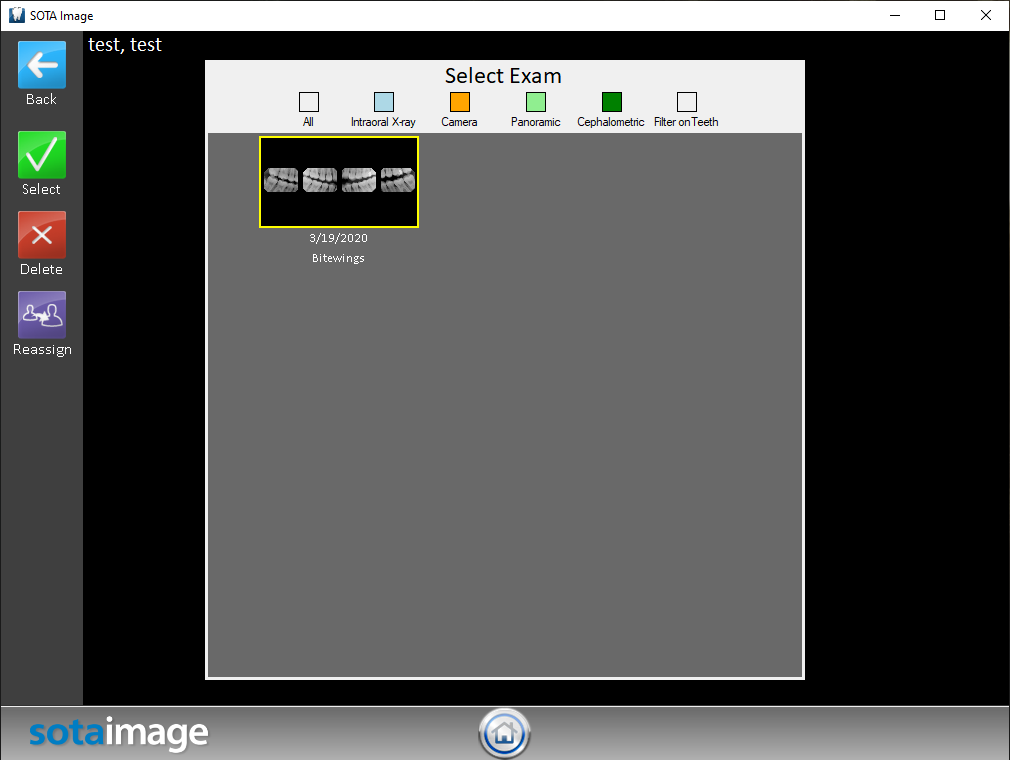

Choose the exam with the images you will be exporting.

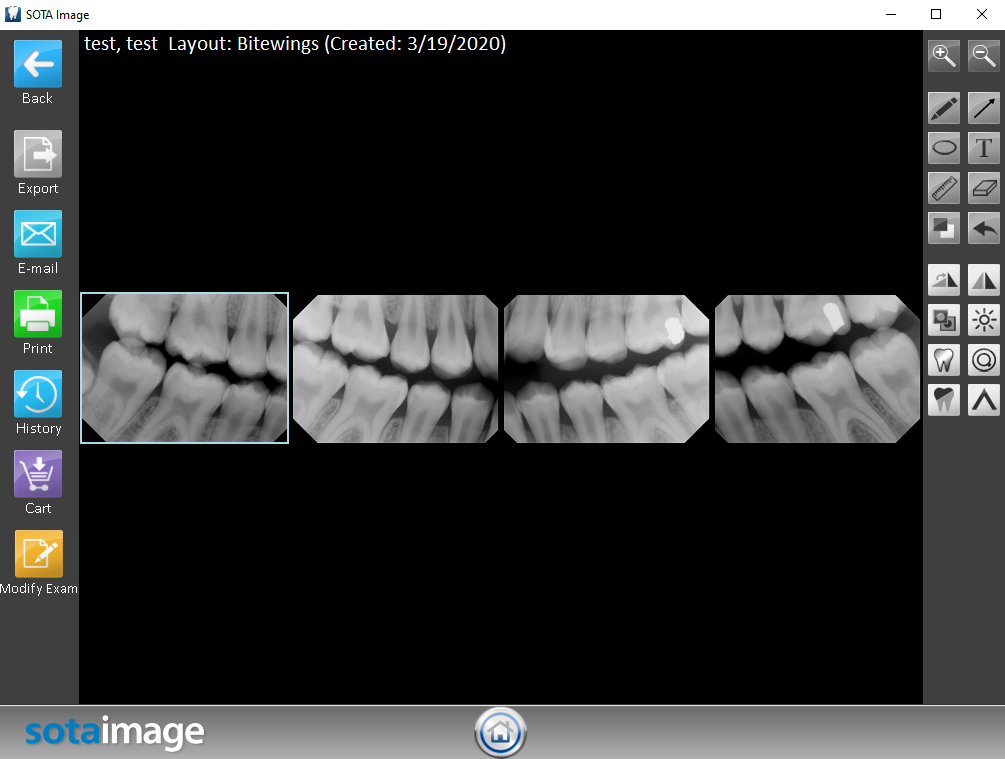

Once you have selected the exam click on the Export icon on the left-hand side of the window.

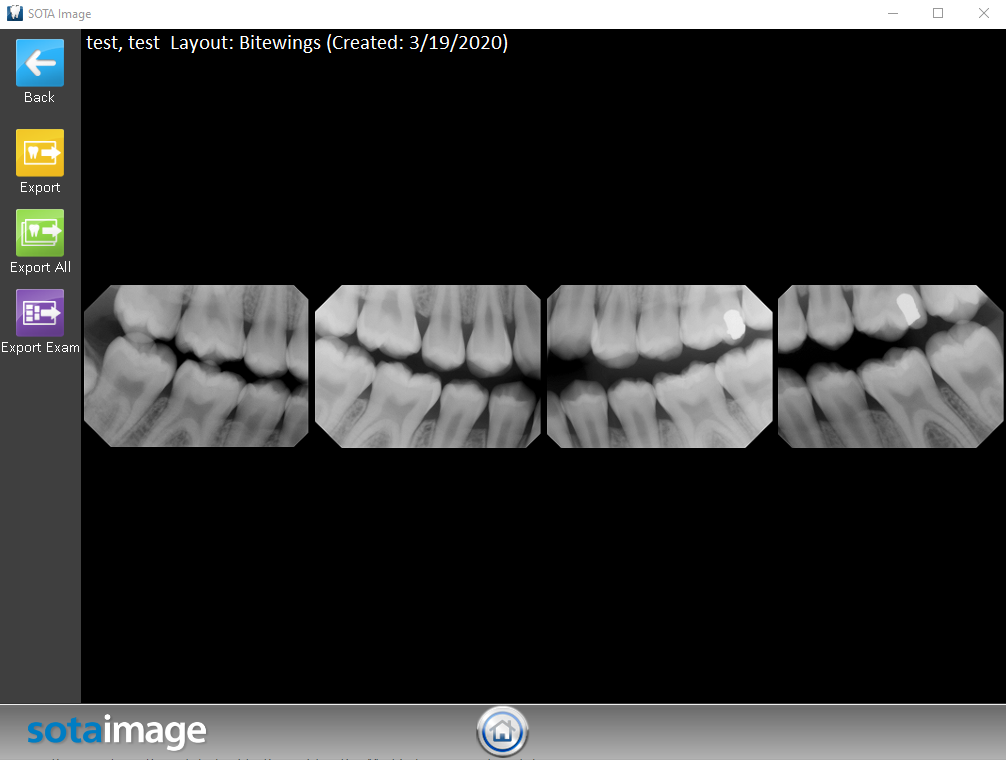

Here, you will have three options to choose from.

• Export will allow you to select and export a single image. You'll see a border around the images selected for export.
• Export All will export every image in the exam as separate files to a folder.
• Export Exam will export the exam as a single image as you see it laid out on the screen.

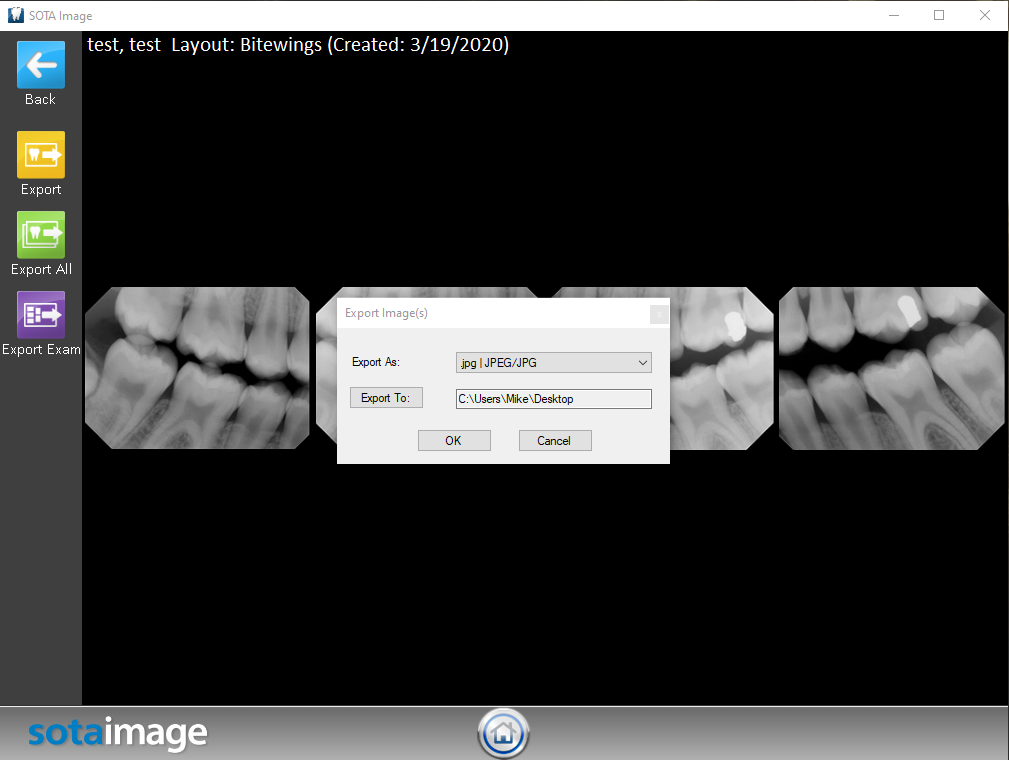

Once you choose the desired option you will be prompted to select where to save your files. It will default to your desktop or you can click the Export To button and browse to a different location. There is also an option to choose the file format you want to export the images as (this option is only available on SOTA Image 2.4 and higher, for older versions, please refer to this guide).

After clicking OK, you'll find the images or the folder containing them at your previously specified location.



If you have any questions about any step of this process, we would love to assist you further. You can reach us by phone at 714.532.6100 extension 2 or by email at [e-mail].
