SOTA Image: Importing Images to SOTA Image

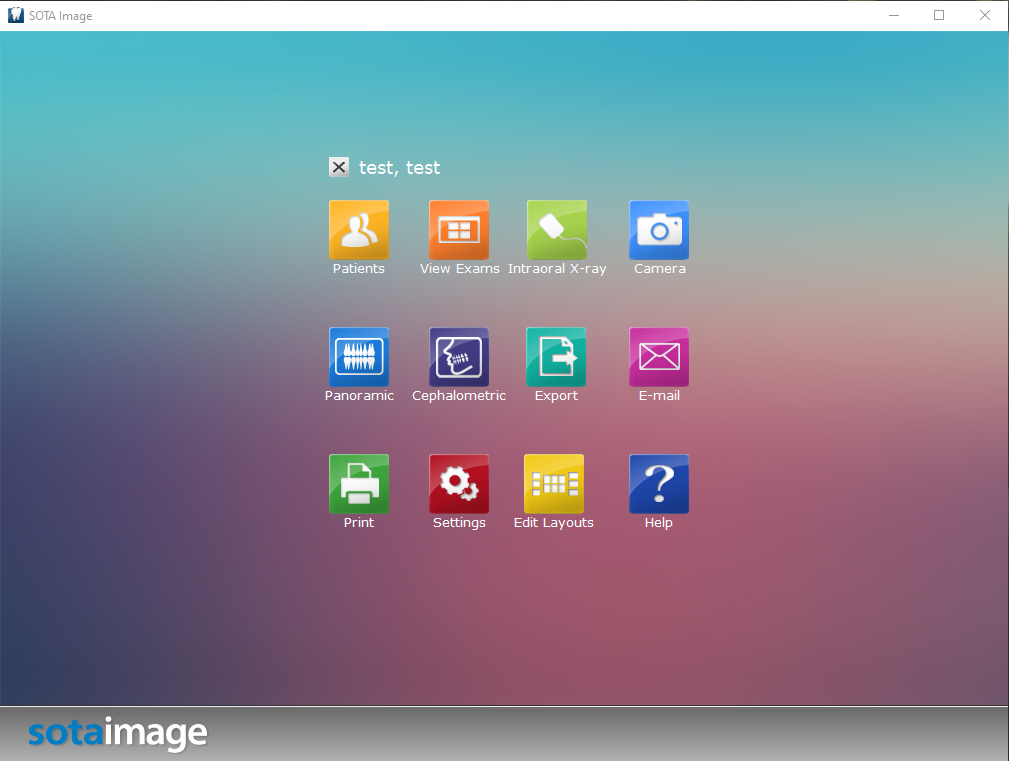

To import images into SOTA Image, first, select the patient that you are importing the images into.

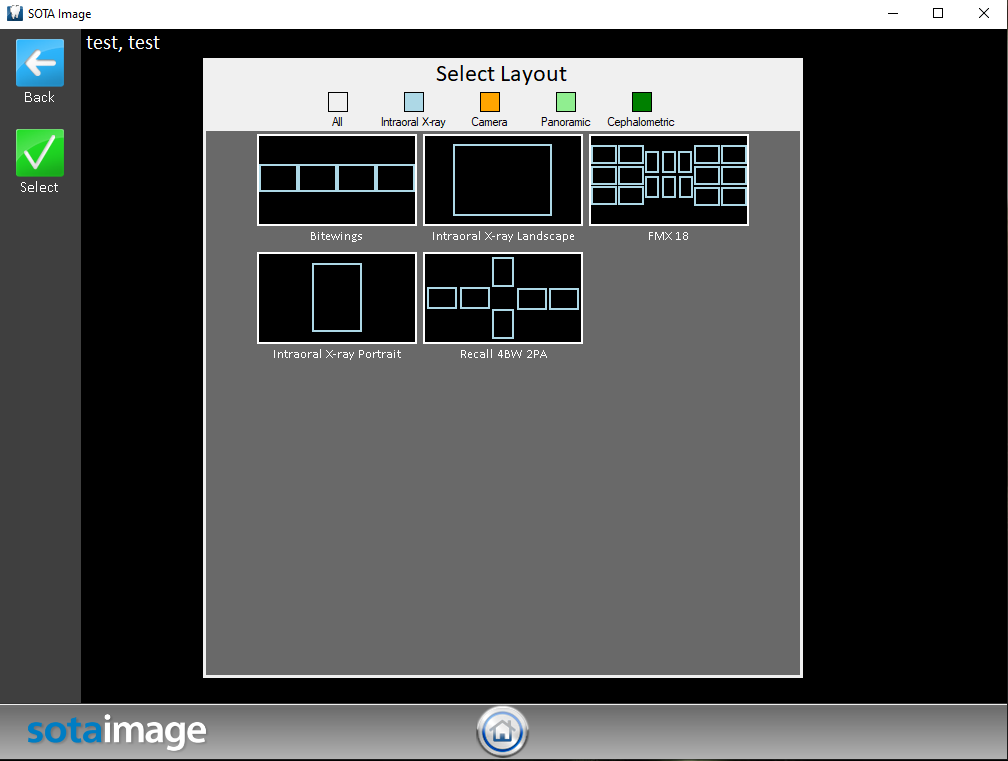

Once the patient is selected you will then select the type of exam (x-ray, camera, panoramic, etc) and the layout you want to import the image into, as if you were taking an exam like normal.

Once the exam is selected, you will need to set the Acquisition Device located at the top of the window to 'Import File'. After setting this you can select Capture for importing a single image or Auto if importing multiple images or a full exam.

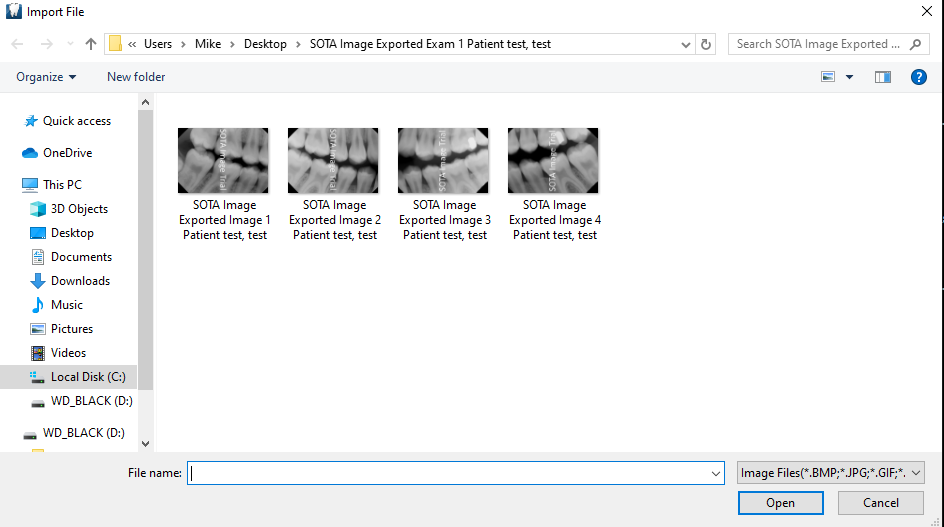

You'll be brought to a file browser window. Simply browse to the location of the image or images you're attempting to import and highlight them before clicking Open. If you're importing multiple images with the Auto function, click and drag your mouse to highlight all of the images that you need or simply hold 'Ctrl' on your keyboard and click on each individual image.

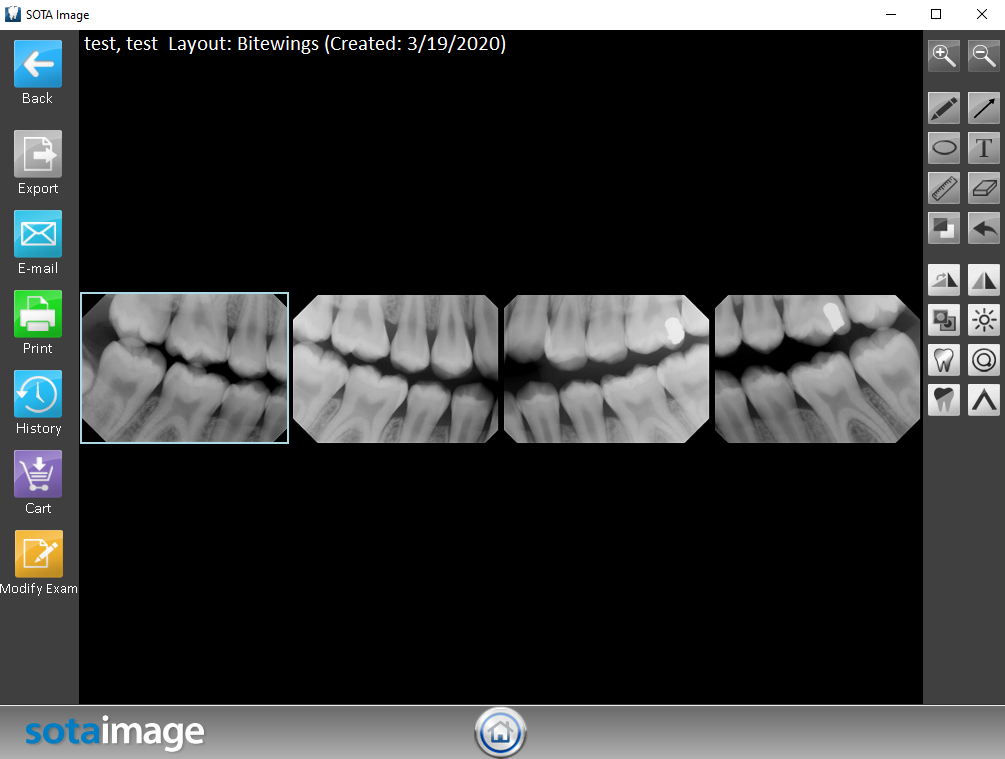

After clicking Open, it will act as if it's taking the exam, pulling in each image that has been selected. Please note that the images may come in out of order or rotated incorrectly. Simply click and drag to rearrange them and use the rotate tool to the right in the Modify Exam view to rotate.

If you have any questions about any step of this process, we would love to assist you further. You can reach us by phone at 714.532.6100 extension 2 or by email at [e-mail].
